Grilles

GUIDE SPECIFICATION

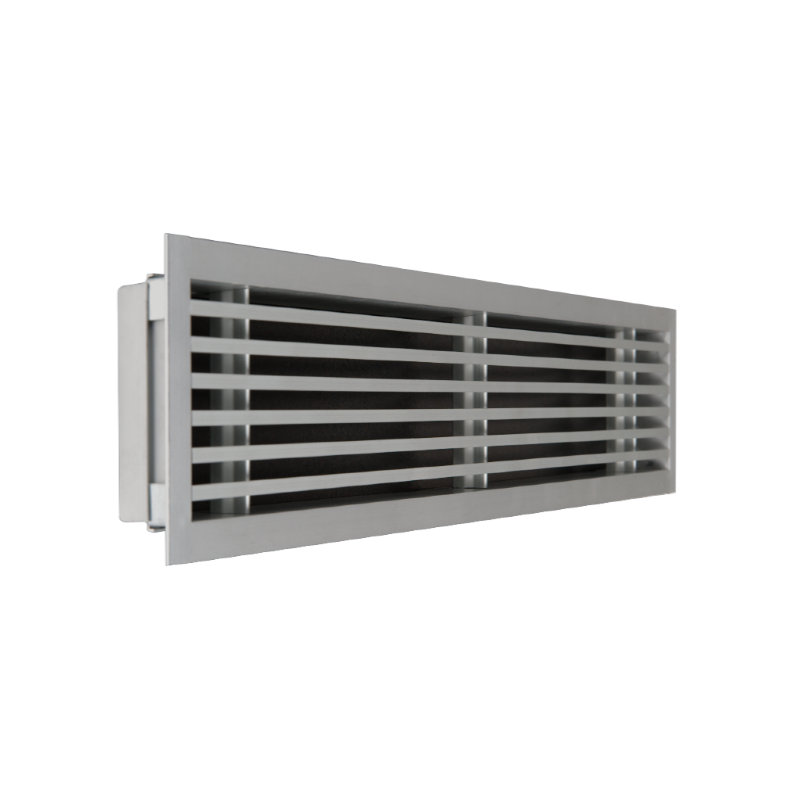

Linear Grilles

Duly powder coated extruded aluminum linear horizontal fixed bar grilles, with 30deg  or 15 deg. or 0 degree deflection blade having pitch of 13 mm and 16 mm. Recommended for heating, cooling, and ventilating applications. Single deflection supply grilles comes in extruded aluminum frame & extruded aluminum Single set of horizontal or vertical blades.
Colour of the product will be provided based up on customer recommendation.

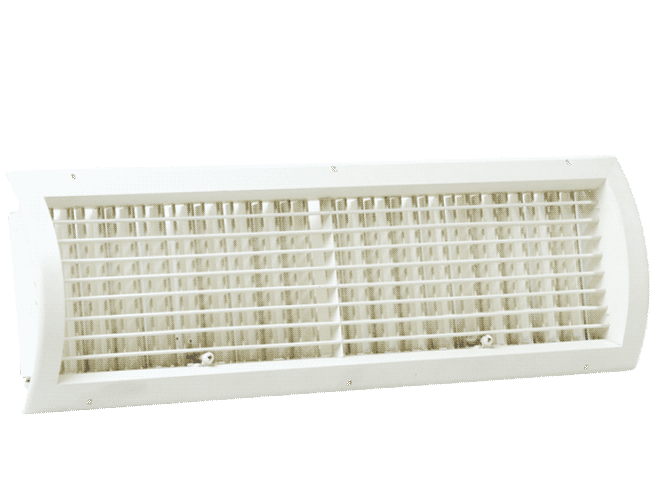

Curved Grilles

Duly powder coated extruded aluminum linear horizontal fixed bar curved grilles, with 30 deg or 15 deg. or 0 degree deflection blade having pitch of 13 mm and 16 mm. Recommended for heating, cooling, and ventilating applications. Also available in black spacer. Single deflection supply grilles comes in extruded aluminum frame & extruded aluminum Single set of horizontal or vertical blades.
Colour of the product will be provided based up on customer recommendation.

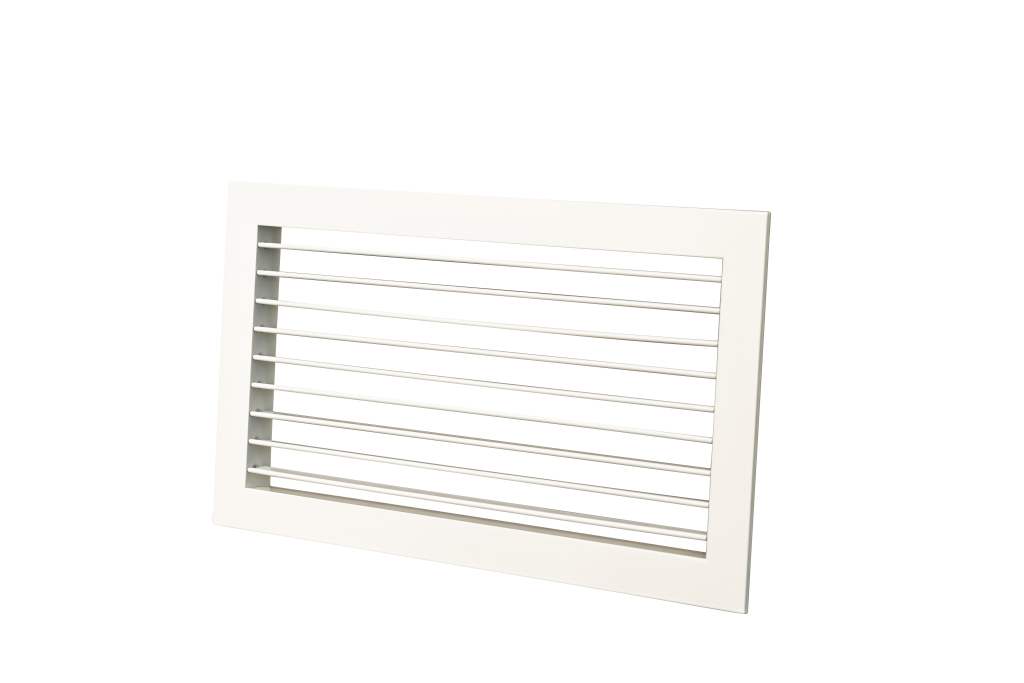

Single Deflection Grilles

These grilles are duly powder coated extruded aluminum single adjustable grilles, with front horizontal or vertical. It is the most common type grille use as a supply outlet with adjustable vanes to provide multi directional air flow.
Colour of the product will be provided based up on customer recommendation.

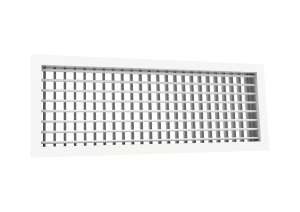

Double Deflection Grilles

These grilles are duly powder coated extruded aluminum double adjustable grilles, with front horizontal and rear vertical. This grille controls the airstream in both the horizontal and vertical planes. It is the most common type grille use as a supply outlet with adjustable vanes to provide multi directional air flow. Aerodynamic blade design. Front blades selected can be either horizontal or vertical.
Colour of the product will be provided based up on customer recommendation.

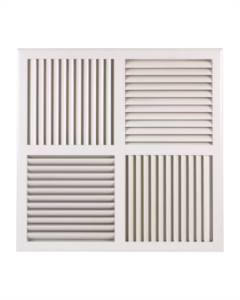

Four Way Grilles

Duly powder coated extruded aluminum linear horizontal fixed bar grilles, with 30 deg or 15 deg. or 0 degree deflection blade having pitch of 13 mm and 16 mm. Recommended for heating, cooling, and ventilating applications. Single deflection supply grilles comes in extruded aluminum frame & extruded aluminum Single set of horizontal or vertical blades.
Colour of the product will be provided based up on customer recommendation.
